Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers

Name: Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 6 Layers
Brand: Lijin
Price: 1 USD

Quality Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers for sale

Brand Name : Lijin

Model Number : HD6877

Certification : IS9001;CE

Place of Origin : China

MOQ : 5

Price : Depend on the size of rack

Payment Terms : T/T, L/C

Supply Ability : 2000 Set/Sets per Month

Delivery Time : 15 days

Packaging Details : Bubble film+carton package

Material : Q235b steel warehouse tyre racking

Layer : 2 ~ 6 Layers

Surface treatment : Electrostatic Powder Coating

Loading Capacity : MAX 4000KG PER PALLET

OEM/ODM : YES

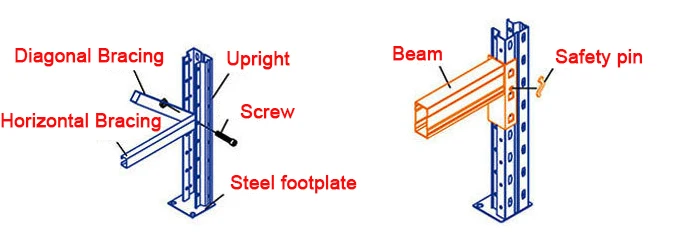

Components : Upright Frame + Beam

Delivery time : 7-25days

Contact Now

China Supplier Heavy Duty Metal Steel Warehouse Racking Stacking Storage Goods Shelving Rack
Rack type:Selective pallet racking
Advantages of selective pallet racking:
1-Cost effective;
2-Easy installing and disinstalling;
3-Most widely used rack type;
Load:up to 4400 kgs per level
Height:as high as 12000mm
Size:customized
Customized
Pls. Tell the size and loading per layer.Our accpet customize size and loading capacity.
 If you need, The shelf can add extra layer.(Standard is 2 layers)
  	 			Model
 			Capacity/KG
 			Size( L*W*H )mm
 			Layer
 			Remark

 			HD-01
 			1000KG
 			2300*1000*2550
 			2
 			Upright:2550*1000*90*70*1.5mm
Beam:2300*100*45*1.2mm

 			HD-02
 			1500KG
 			2300*1000*2550
 			2
 			Upright:2550*1000*90*70*1.5mm
 			Beam:2300*100*45*1.5mm

 			HD-03
 			2000KG
 			2300*1000*2550
 			2
 			Upright:2550*1000*90*70*1.8mm
Beam:2300*120*45*1.5mm

 			HD-04
 			300KG
 			2300*1000*2550
 			2
 			Upright:2550*1000*90*70*2.0mm
Beam:2300*140*45*1.5mm

 			HD-05
 			4000KG
 			2300*1000*2550
 			2
 			Upright:2550*1000*90*70*2.0mm
Beam:2300*160*45*1.5mm


Selective pallet rack or heavy pallet rack is a common racking system in use today. pallet rack systems consist of steel uprights and beams to support some type of decking to store goods. These systems offer maximum flexibility because the strength, height and length of the bays can be varied during installation to suit the stored material.
Strengths:
1,Adapt to a wide range of goods,100% cargo picking.
2,Compatible with forklifts and other handing equipment.
3,Beam can be flexibly adjusted to suit different cargo height.
4,Easy to disassemble and move.

If you have any interested, please feel free to contact me:

Tel: (86)769-81769089 (86)769-81769090

Fax: (86)769-81767397 Mobile: (86)18390959816

Whatsapp:+86 18390959816 Skype: lee@chinrack.net

Email: lee@chinarack.net / lijinracklee@gmail.com

Website: http://www.industrial-storagerack.com

Product Tags:

Heavy Duty Pallet Storage Rack Q235b Steel

2 Layers heavy duty racking shelves

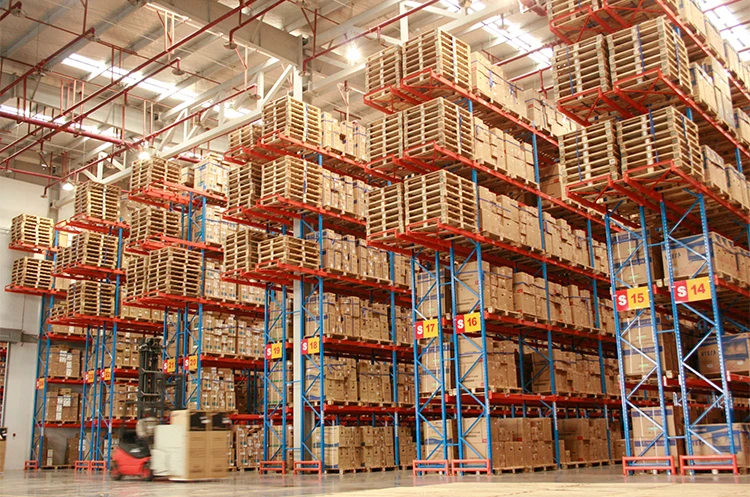

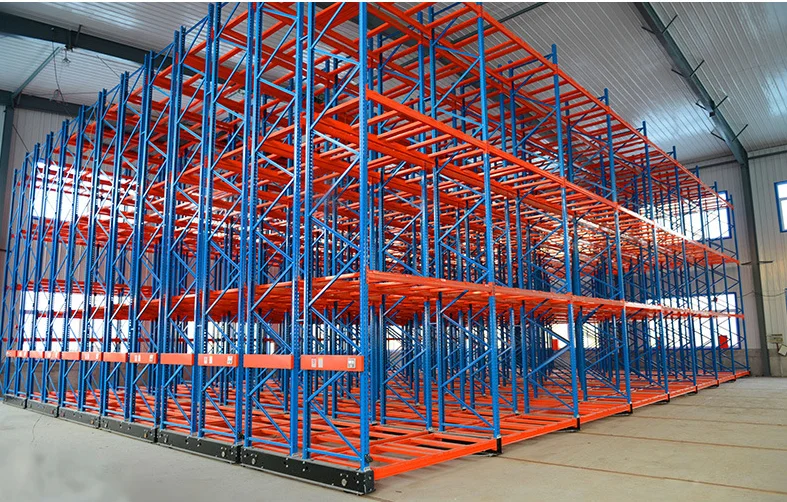

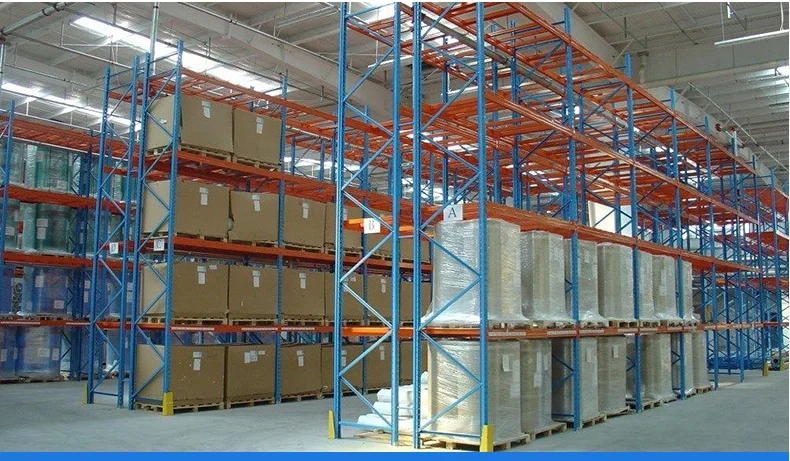

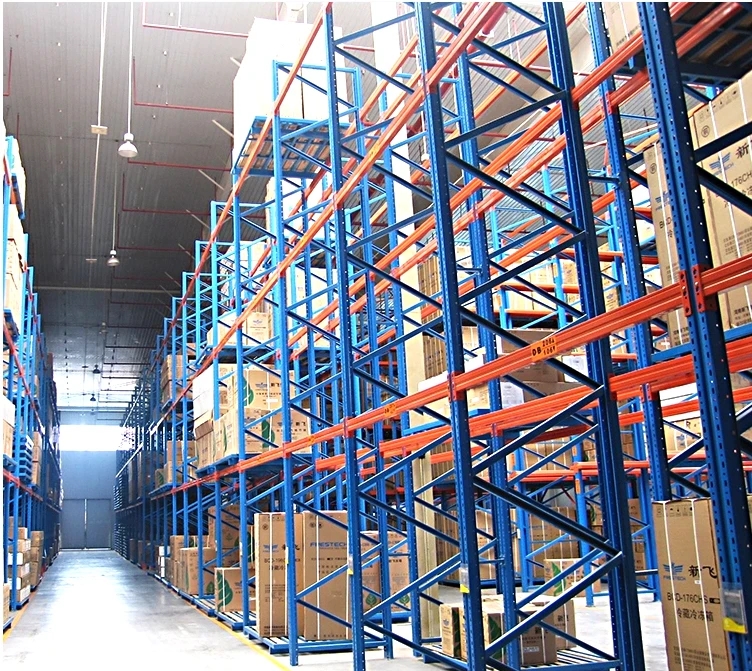

Q235b Steel Warehouse Heavy Duty Pallet Storage Rack 2 - 6 Layers Images
